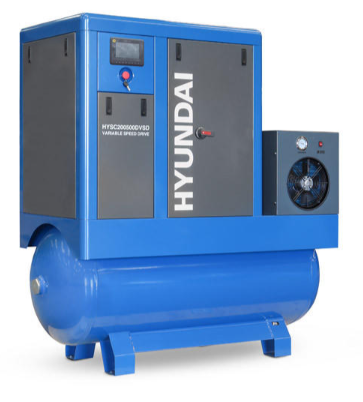

Troubleshooting guide for the HYUNDAI HYSC200500DVSD 20hp 500L Magnet Screw Air Compressor

Failure Review:

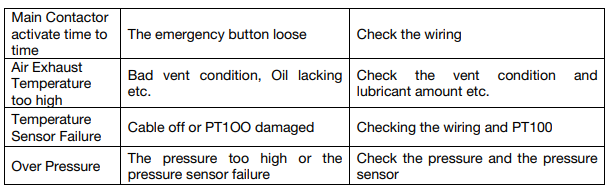

When a fault occurs, the controller in the main interface displays the current fault content. For example, when the pressure sensor fails, it displays the following interface:

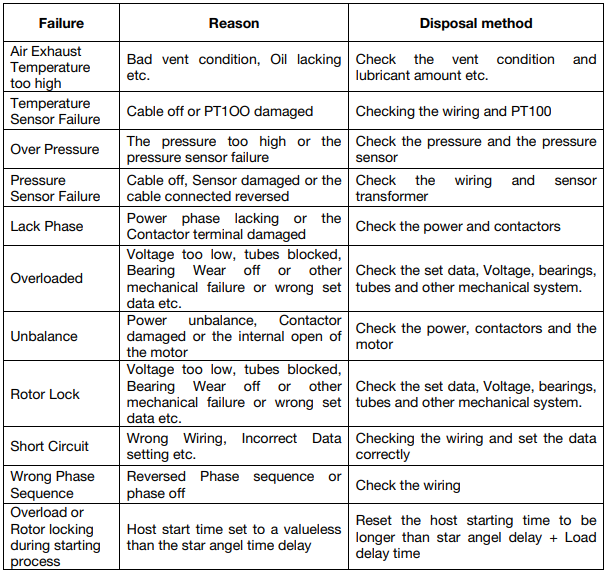

Here are some common faults and causes:

We hope this troubleshooting guide can help resolve the issues.

Should further assistance be required, do not hesitate to contact us on 01 646 687 880 or [e-mail]

For parts please visit Power-spares.co.uk
