Troubleshooting and Maintenance Guide for the Hyundai HY155HPW-1 Hot Pressure Washer

Troubleshooting:

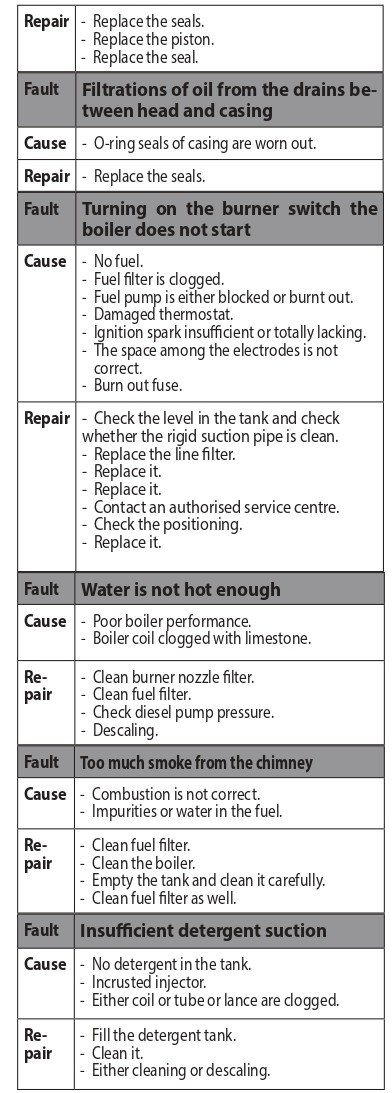

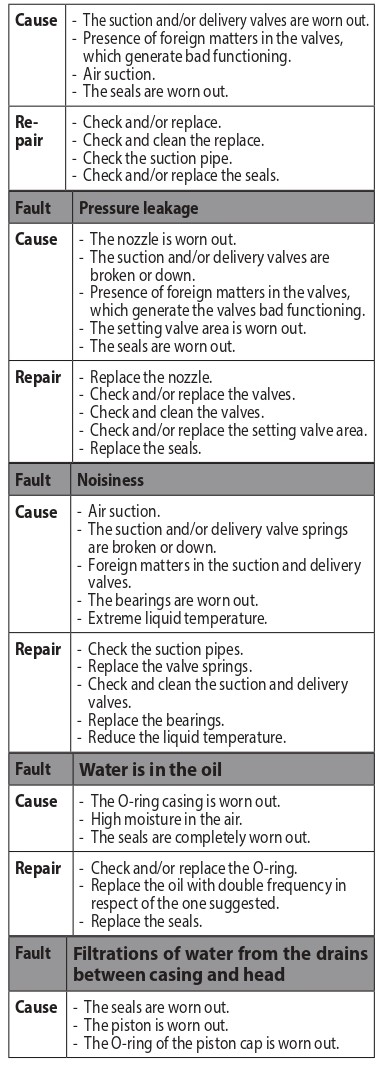

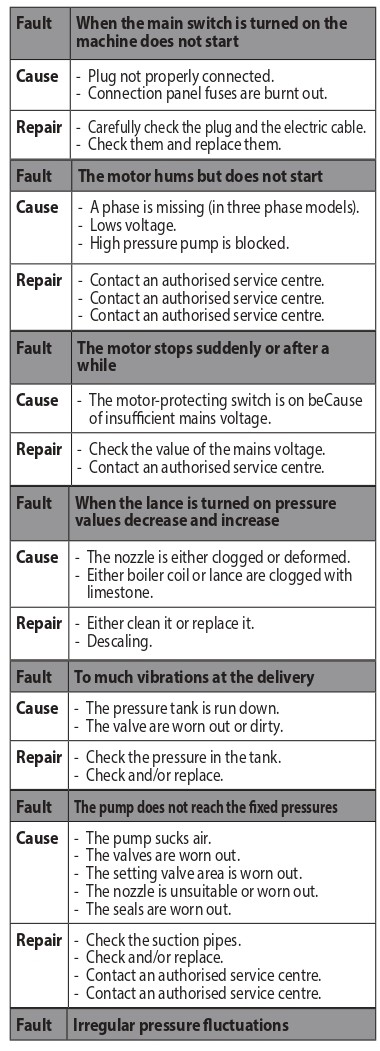

Before doing any work on the machine, disconnect the electricity and water supplies and discharge the pressure. Proceed systematically to identify Faults following the chart below; if you are still unable to eliminate the problem, call in the Authorized After-Sales Service.

Maintenance & Care

Storing the Appliance:

• Lock in the steel pipe into the holder of the appliance hood.
• Roll up high pressure hose and electrical conduit and hang them into the respective holders.

Device with hose drum:

• Before rolling up, stretch out the high pressure hose.
• Turn the hand crank clockwise (Direction of the arrow).

Note: Do not twist high pressure hose and electrical conduit.

• Store the appliance and the accessories in a dry safe place, out of the reach of children.
• Store the appliance and the accessories in a frostsafe room.
• This appliance must only be stored in interior rooms.

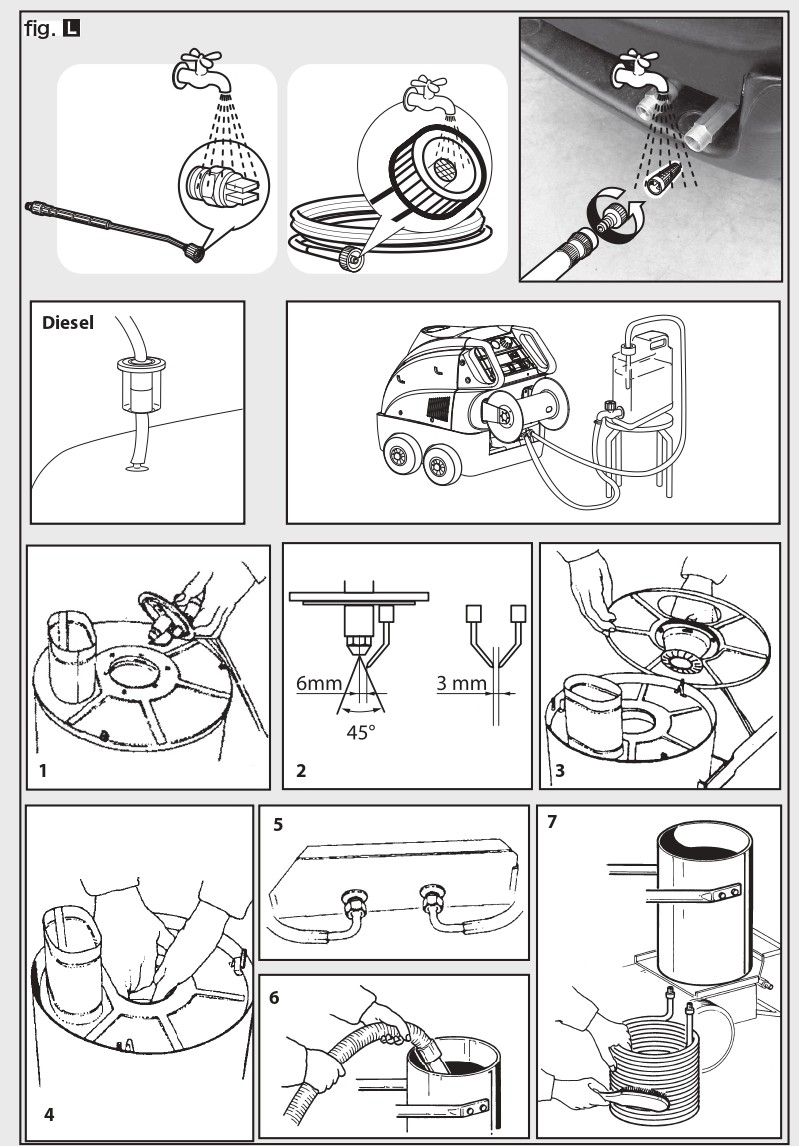

Maintenance: (Refer to Fig L)

SCHEDULED MAINTENANCE PLAN Visit www.lavorservice.com website and download the scheduled maintenance plan.

IMPORTANT: Before doing any work on the cleaner, discharge the pressure and disconnect the electricity and water supplies.

CHECKING THE PUMP OIL LEVEL:

Check the oil level periodically. The oil must be changed for the first time after 50 working hours, with subsequent changes every 500 hours. SAE 20/30 , 15W-40, 20W-40 oil is recommended.

CHECKING THE WATER INTAKE FILTER:

Inspect and clean the water intake filter on the intake union periodically. This is important to prevent fouling, which may impair the operation of the pump.

CLEANING THE FUEL FILTER:

Check the fuel filter periodically and replace if it has deteriorated or is excessively dirty.

DESCALING:

The descaling procedure must be carried out periodically with specific products. The interval depends on the hardness of the water. Pour one litre of product for every 15 litres of water into a drum containing at least 30 litres of water. Disconnect the gun from the high-pressure line and place its free end in the drum in order to form a closed circuit, and draw the solution into the machine for at least 10 minutes. The delivery end of the line should discharge into a canvas or mesh bag so that the scale removed is not returned to the circuit. Then restore the normal connection and rinse with plenty of cold water. This operation should be carried out by our after-sales service since the descaling product may cause wear of components. Comply with the regulations in force when disposing of the descaling agent.

Liquid softener tank integrated (optional, if included):

The descaling procedure must be carried out periodically with specific products. The interval depends on the hardness of the water. This operation should be carried out by our after-sales service, since the descaling product may cause wear of components. Comply with the regulations in force when disposing of the descaling agent.

• Fill the softener tank with our products (in all cases, with non-corrosive products). The dispensing rate is set at a medium value; the After Sales Services will be able to adapt the setting to local conditions.

BOILER CLEANING:

WARNING: For all maintenance of the boiler, of the high-pressure pump, and of the machine, it is necessary to address to qualified personnel or to an authorised assistance center.

The boiler cleaning must be periodically executed every 180 ÷ 200 hours of working proceeding as follows:

• Carefully remove the nozzle holder flange and the electrode holder (boiler head).
• Clean with compressed air the nozzle filter and check the electrodes position.
• Remove the boiler cap and clean the deflector.
• Manually take away the interior cap.
• Unscrewing the locking nuts and taking the boiler coil out.
• Clean the coil with an iron brush.
• Suck the residues from the boiler.
• Replace every parts doing the operations in the inverse way.

WARNING: The general checking and combustion regulation must be periodically executed by specialised personnel as prescribed by the law.

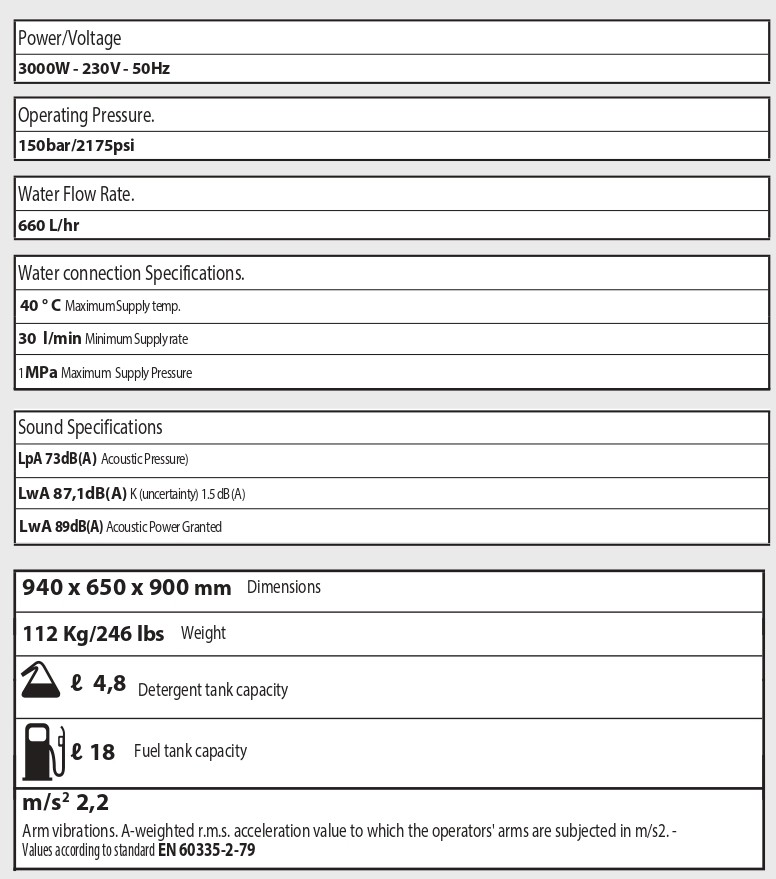

Technical Data:

If you need any spare parts for your HY155HPW-1, please take a look at our page: https://power-spares.co.uk/

For further assistance, call our aftersales team on 01646687880.

For more information, helpful hints and tips, visit the Hyundai Power Equipment website: hyundaipowerequipment.co.uk
