HYHT550E - Troubleshooting and general tips

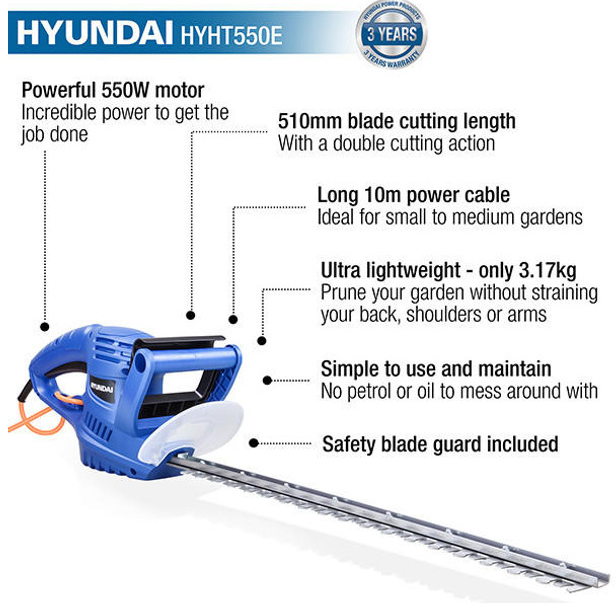

The HYHT550E is an electric hedge trimmer from HYUNDAI. The HYHT550E has a blade length of 510mm and is powered by a 550W HYUNDAI motor.

This machine was designed and manufactured for trimming hedges, bushes and shrubs.

Cutting tips

• Do not force the hedge trimmer through heavy shrubbery. This can cause the blades to bind and slow down. If the blades slow down, reduce the pace.
• Do not attempt to cut stems or twigs that are too large to feed into the cutting blade. Use a non-powered hand saw or pruning saw to trim large stems.
• If blades do become jammed, stop the motor, allow the blades to stop and disconnect the plug from the power source before attempting to remove the obstruction.
• If desired, you can use a string to help cut your hedge level. Decide how high you want the hedge. Stretch a piece of string along the hedge at the desired height. Trim the hedge just above the guide line of string.
• Wear gloves when trimming thorny or prickly growth. When trimming new growth, use a wide sweeping action, so that the stems are fed directly into the cutting blade. Older growth will have thicker stems and will be trimmed easiest by using a sawing movement.
• To achieve a straight line, we recommend standing still and cutting everything within you reach before moving on. It is much harder to cut a straight line whilst you are walking.

General Maintenance

Turn OFF the machine, allow all moving parts to come to a complete stop, and disconnect the power cord before maintaining the machine.

You need to wear proper clothing and protective gloves whenever your hands are
at risk.

• Keep all nuts, bolts and screws tight to be sure the machine is in a safe working
condition.
• Replace worn or damaged parts for safety. Only use manufacturer recommended parts and accessories.
• To keep your machine in good working condition, you can use spray lubricating
oil along the blade, on the top of the blade, and the bottom of the blade.

Storage

• Make sure the machine is clean and dry before storing.
• Put the blade cover on the blade when in storage.
• Ensure the machine is stored in a position, where any persons cannot step on, to
  attempt to reach items up high, due to risk of movement.
• DO NOT store the machine near an ignition source, such as a wood stove, gas
  or electric heater, or an appliance or heater with a pilot light.
• Store the machine out of reach of children or anyone who is not familiar with
  operation.
• DO NOT stack other items on top of the machine when in storage.
• Make sure the machine is stored away from direct sunlight. Store indoors or in a
  safe, frost-free area during severe weather and winter months.

Cleaning

• Remove any grass and mud after each use to prevent it from drying. Use a clean cloth to remove dirt, grease, etc.
• DO NOT use any water on any part of the main machine.
• Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use.

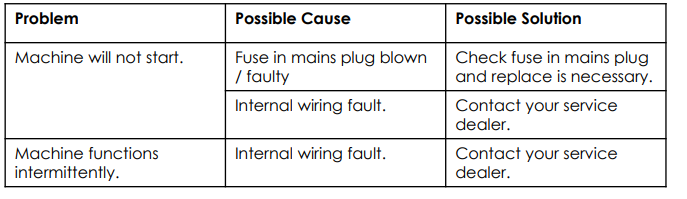

Troubleshooting

If you need any assistance, our dedicated aftersales team is here to assist. You can call us on 01646 687 880 or send us an email to [e-mail]
