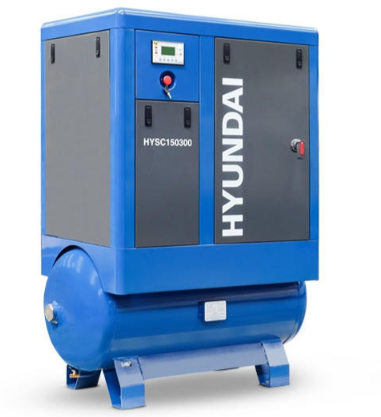

Troubleshooting guide for the HYUNDAI HYSC150300 15hp 300 Litre Screw Compressor

Failure Review:

When a fault occurs, the controller in the main interface displays the current fault content. For example, when the pressure sensor fails, it displays the following interface:

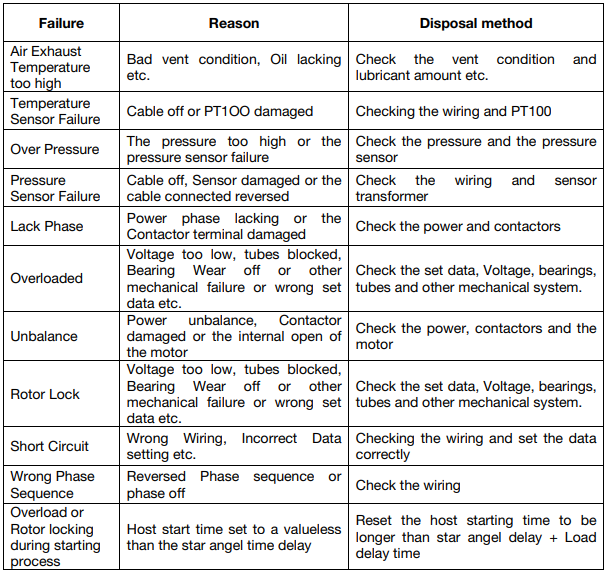

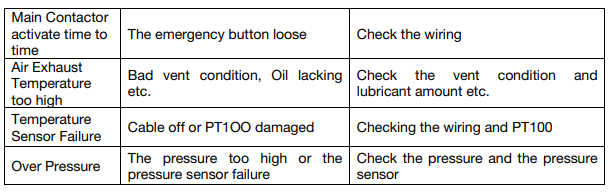

Here are some common faults and causes:

We hope this troubleshooting guide can help resolve the issues.

Should further assistance be required, do not hesitate to contact us on 01 646 687 880 or [e-mail]

For parts please visit Power-spares.co.uk
