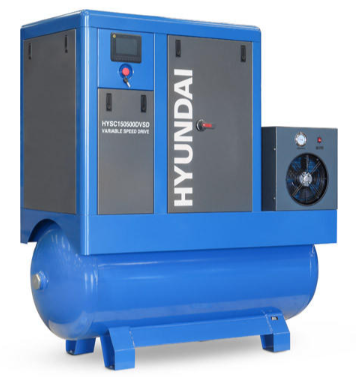

Troubleshooting guide for the HYUNDAI HYSC150500DVSD 15hp 500L Permanent Magnet Screw Air Compressor

Failure Review:

When a fault occurs, the controller in the main interface displays the current fault content. For example, when the pressure sensor fails, it displays the following interface:

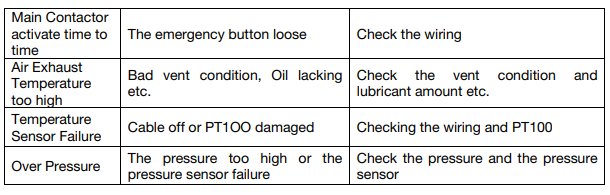

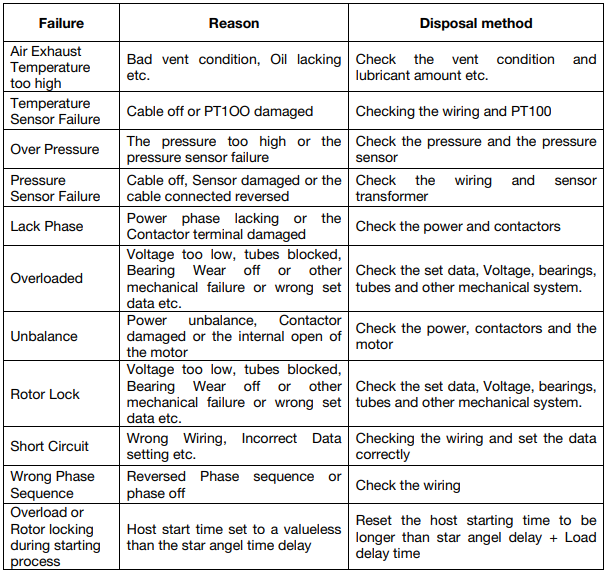

Here are some common faults and causes:

We hope this troubleshooting guide can help resolve the issues.
