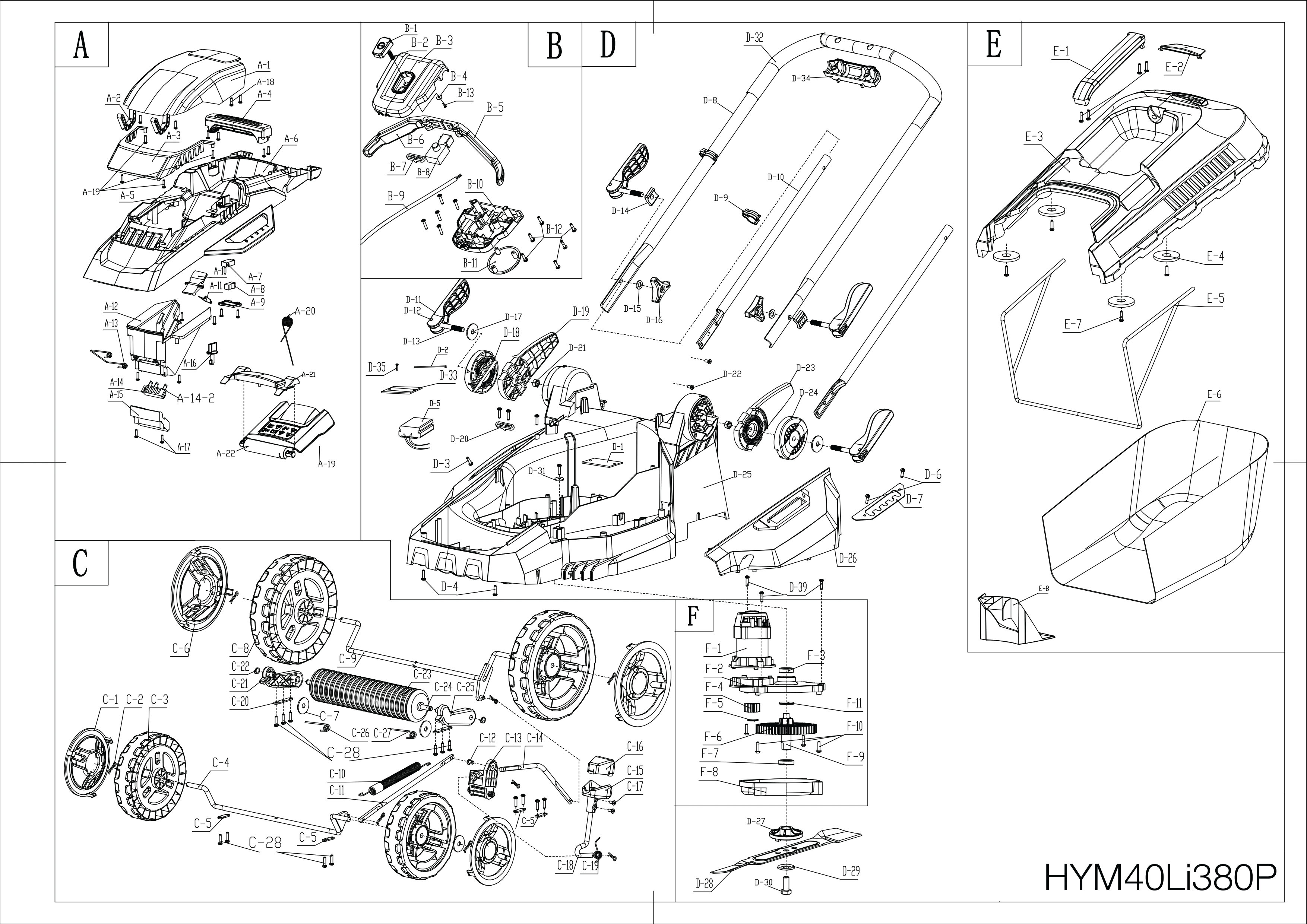

Exploded View Diagram for the HYM40LI380P Lawn Mower

Would you like to know more about your Hyundai HYM40Li380P Lawnmower?

Do you need any replacement part but you are unable to judge which part it is?

Rest assured, the below Diagram has all the answers to your questions.

If you require further assistance please contact us at [e-mail]

For information on our other products and power tools, visit: hyundaipowerequipment.co.uk

⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺⸺
