Mini Dumper Cable Adjustment Guide

This guide covers the adjustment of the steering cables, drive cables, and belt tension on a
mini dumper.



Mini dumpers typically have four control cables:

● 2 × Steering cables (left and right)
● 2 × Drive/Brake cables



1. Steering Cable Adjustment

Symptoms of incorrect steering cable tension

● The machine pulls to one side
● Steering is slow or unresponsive
● You need to push excessively hard on one handle to turn



Step-by-Step Steering Adjustment

Step 1 — Fully release both steering cables

Locate both steering cable adjusters (shown in the photo at the bottom of the statement).
Turn the adjusters all the way in to release all cable tension.
This puts the steering system back to its neutral baseline.

Step 2 — Reapply tension gradually

Now begin to wind each adjuster out slowly, a small amount at a time.

● The right cable controls right turns (as viewed from behind the handlebars).
● The left cable controls left turns.

Adjust one side a little, test the steering, then adjust again until the dumper turns correctly.

Step 3 — Test the steering

Move the dumper forward and check:
● Turning right should feel even and responsive
● Turning left should respond the same
● No side should feel tighter or looser than the other

● Step 4 — Repeat if needed

If the steering still isn’t correct, return both adjusters to fully off again and repeat the process.
Small increments are important—avoid tightening too much at once.

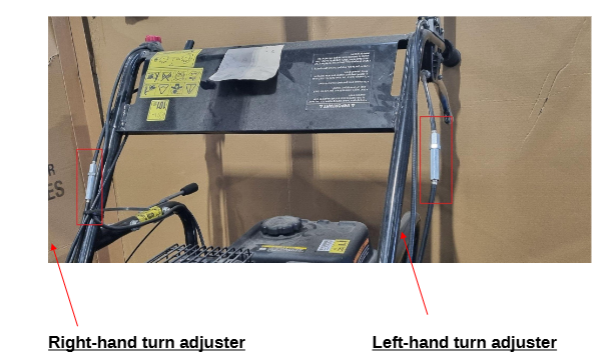

This is a photo of the two adjusters for the steering





2. Drive and Brake Cable Adjustment (Detailed Guide)



Mini dumpers often share the same control layout:

● The drive cable engages the transmission or clutch to move the dumper
forward.
● The brake cable applies braking force
Proper adjustment ensures smooth engagement, good stopping power, and
prevents premature wear.
A. Drive Cable Adjustment
Purpose of the Drive Cable
The drive cable pulls on a clutch arm or belt tensioner. Tightening it engages
drive; releasing it disengages drive.

Symptoms of Incorrect Drive Cable Adjustment

● Too Loose:
○ Dumper struggles to move under load
○ Drive engages slowly or slips
○ High engine revs but poor movement
● Too Tight:
○ The drive remains partially engaged even when the lever is released
○ Dumper creeps forward on its own
○ Belt or clutch overheats



How to Adjust the Drive Cable



Step 1 — Check free play
At the drive lever, gently pull the lever without engaging the mechanism.
You should feel 2–4 mm of free play before tension is applied.
(This prevents the drive from being constantly “on”.)



Step 2 — Find the adjuster

The adjuster is usually located:
● On the lever itself, or
● Inline on the cable housing near the engine
It will have a barrel adjuster and lock nut.

Step 3 — Adjust tension

● To increase drive engagement Turn adjuster outwards (away from the→
lever)
● To reduce engagement Turn adjuster inwards→
Make small adjustments (1–2 turns at a time).
Run the dumper:
● When you squeeze the drive lever, it should pull strongly.
● When you release it, the dumper must stop driving completely with zero
creeping.

If it creeps forward, back the adjuster off a little

.
B. Brake Cable Adjustment

Purpose of the Brake Cable

The brake cable applies tension to the brake mechanism (usually drum or disc),
slowing or stopping the dumper.

Symptoms of Incorrect Brake Cable Adjustment

● Too Loose:

○ Weak braking



○ Excessive lever travel before the brakes engage
○ The dumper rolls downhill too easily

● Too Tight:

○ The brakes drag constantly
○ Wheels are hard to rotate when lifted
○ Overheating or premature brake wear

How to Adjust the Brake Cable

Step 1 — Lift the drive wheels (if safe to do so)
This allows you to spin the wheel and feel brake drag.
You can also test without lifting if needed.

Step 2 — Locate the brake cable adjuster

Usually found:

● Where the cable meets the brake arm
● Or at the brake lever on the handlebars

Step 3 — Set proper free play

You should have 3–5 mm of lever movement before the brakes begin to bite.

To adjust:
● Turn the adjuster outwards → increases braking force
● Turn the adjuster inwards → reduces braking force

Step 4 — Test wheel rotation

With the brake released, the wheels should spin freely with no scraping or drag.
With the brake engaged, they should stop firmly with moderate lever pressure.



Step 5 — Lock everything down

Once the adjustment feels correct, tighten all the lock nuts to keep the settings
secure.

C. General Tips for Both Drive and Brake Cables

● Always make small adjustments and retest.
● Lubricate the cables occasionally to prevent stiffness.
● Replace any frayed or rusty cables immediately.
● If the dumper uses a belt-driven transmission, check belt tension at the
same time—drive slipping can sometimes be caused by a loose belt, not
the cable.

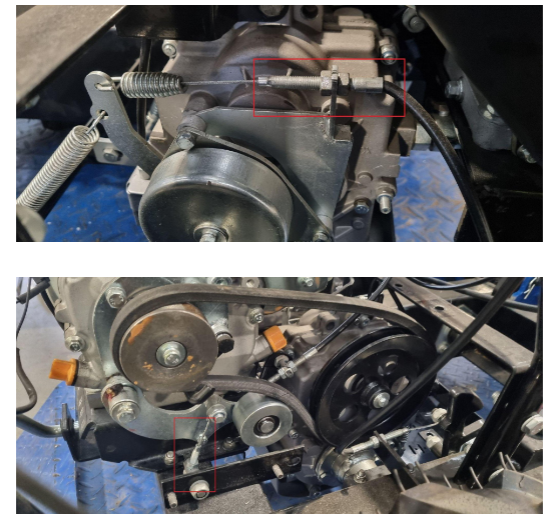

This is a photo of the two adjusters for the brake and belt

This is the photo of the brake adjuster

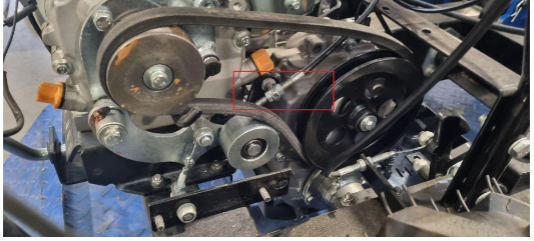

This is the photo of the belt adjuster
