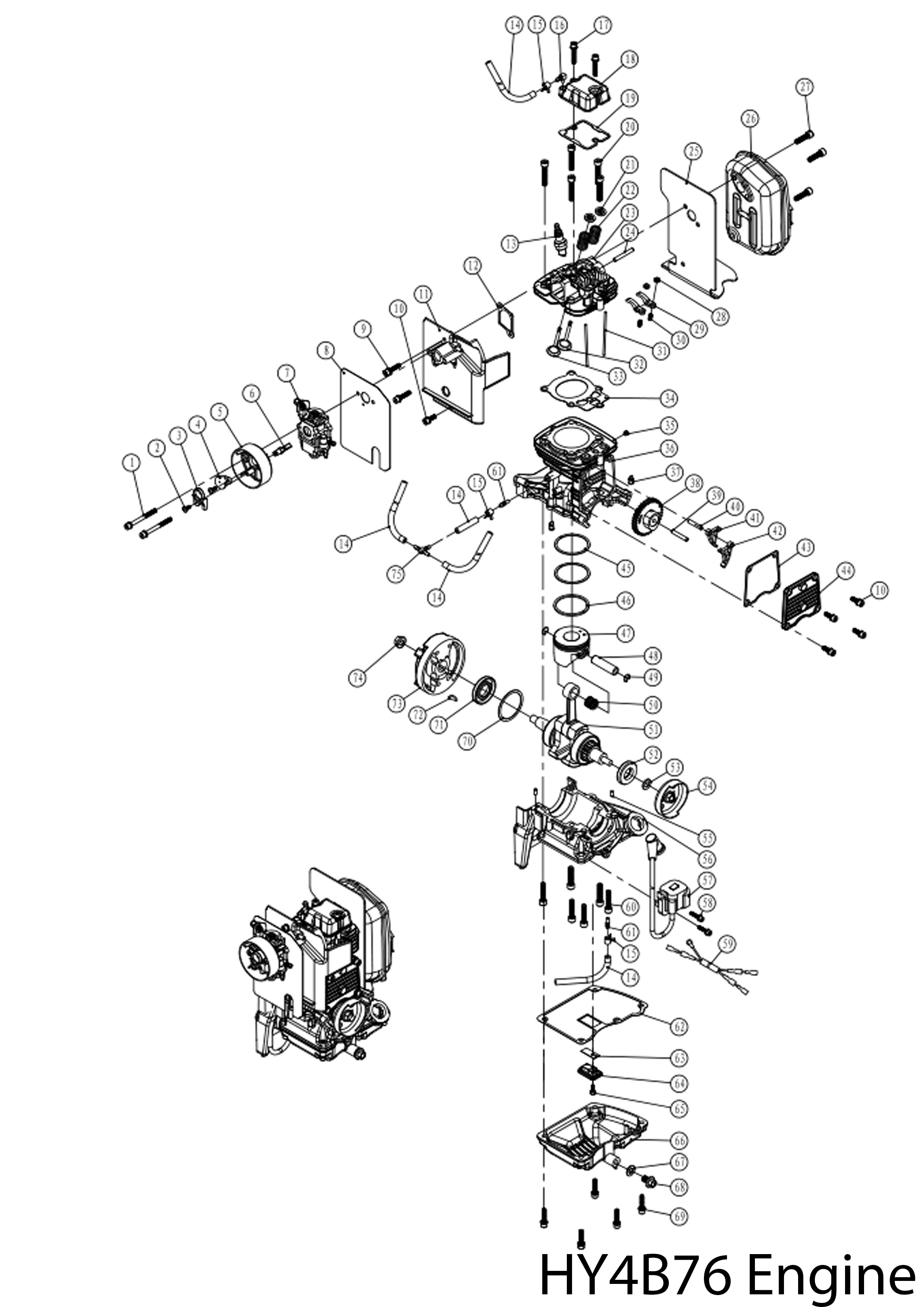

Exploded View Diagram for the HY4B76 Leaf Blower Engine

Alex Othen

February 18, 2022 15:42

HY4B76 Engine.png
1 MB Download
