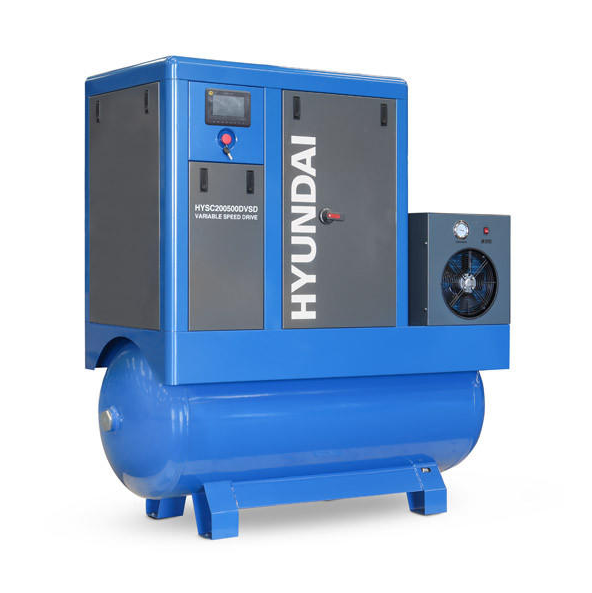

This is a simple guide for the electrical installation of a Hyundai Screw Compressor
A screw compressor operates by using rotating screws to trap and compress air; our range of Hyundai Screw Compressors are highly customisable to meet your requirements, ideal for professionals looking for a high-powered, low-cost and reliable source of pressurised air.

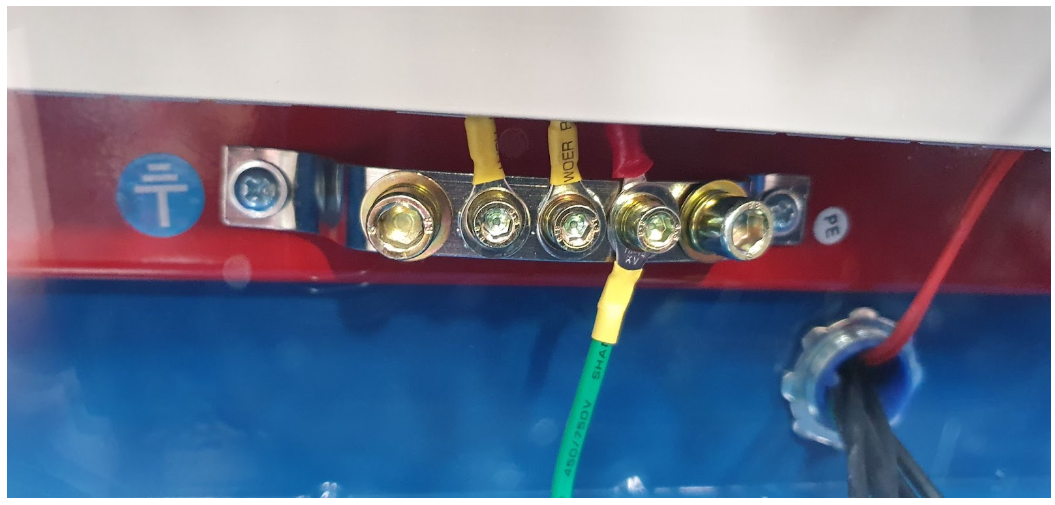

1. First, the 4 core (Live 1, Live 2, Live 3, and Earth) must be fed through the cable holes; the earth core is to be fitted to the earth bar at the bottom of the control panel:

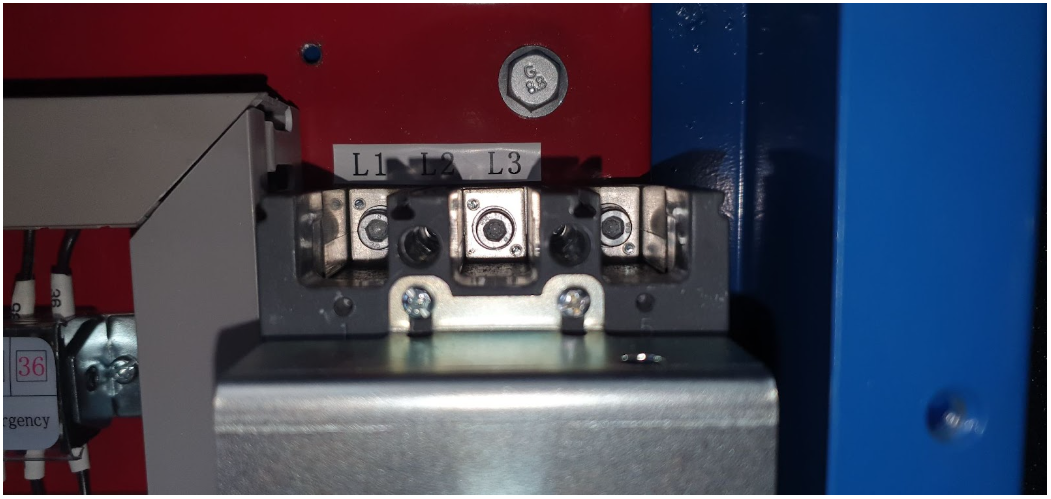

2. Next, Live 1 (Brown), Live 2 (Black), and Live 3 (Grey), are to be fitted to the top of the main breaker:
⚠️
PLEASE NOTE: If the cable phases are installed incorrectly, an error alarm will sound from the control panel. If this occurs, swap the phases and try again - if the issue persists, contact Hyundai Power Products for further assistance.
⚠️

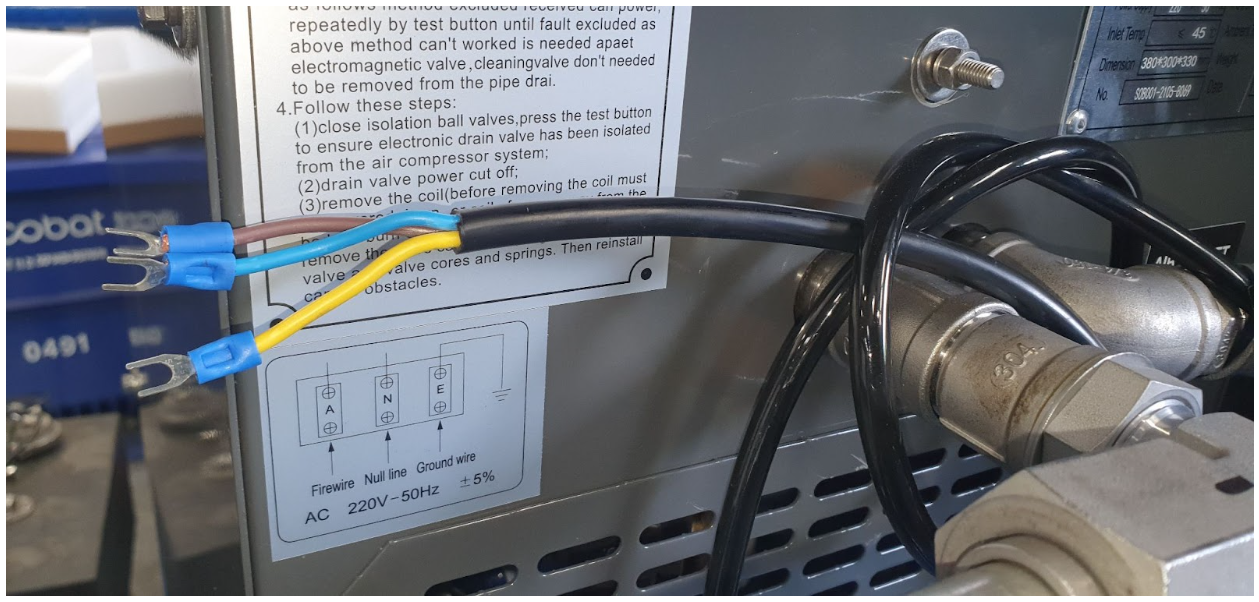

3. The dryer is to be installed via a fused spur OR a 13 Amp standard 3-pin plug:
Brown - Live | Blue - Neutral | Yellow - Earth
IN THE EVENT YOU REQUIRE FURTHER ASSISTANCE PLEASE DON'T HESITATE TO CONTACT HYUNDAI POWER PRODUCTS AND WE WILL BE HAPPY TO HELP
