HY2183 - Assembly

The HY2183 is a compact cordless circular saw boasting a 4Ah battery from Hyundai’s brand new 20vMAX range, designed for any DIY or carpentry tasks that require making precise cuts in wood and lumber.

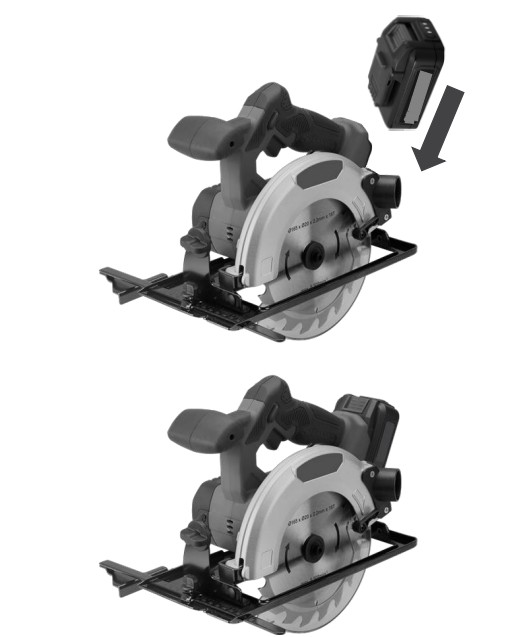

HY2183 Battery Assembly

• Slide the Battery(M) into the Battery Carriage at the bottom on the Machine Handle. An audible *click* will be heard when it’s correctly located
• To Remove the Battery, press the Battery Release Button (O), and pull.

Battery Charger Operation

• Slide the Battery into the Battery Charger, by lining up the terminals on both. It will be secured with an affirmative *click!*.

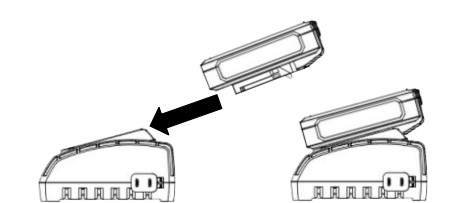

NOTE – To remove the battery, press the Battery Release Button whilst pulling away from the Battery Charger

• Plug in the Battery Charger, then turn on the power source.

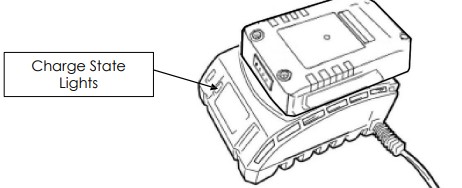

• The Charge State Lights will indicate the following:

1. Solid Green & Flashing Red: Charging
2. Solid Green & Solid Red: Fully charged
3. Flashing Green: Thermal protection activated, this is when the battery is either too hot or too cold to be charged. The charger will commence charging when the battery has reached the correct temperature.

4. Red: Defective battery or charger

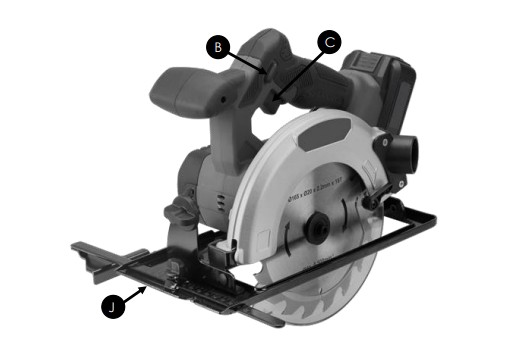

HY2183 Starting & Stopping

• To start the machine, firstly press the Safety Switch (B). At the same time, press the On/Off Trigger (C). The machine will start.

Allow 1 to 2 seconds for the machine to reach maximum operating speed before starting a cut. To stop the machine release both buttons and allow the machine to stop turning before putting down.

HY2183 Suitable Cutting

• Always use 2 hands when operating the machine. Use the Auxiliary
  handle and the Handle.

When starting a cut, rest the machine on the front of the Baseplate (J), work the blade into the workpiece without too much force, this may make the blade kick back, or cause the motor to stall.

• Never MAKECURVED CUTS, this will snap the blade and cause damage.

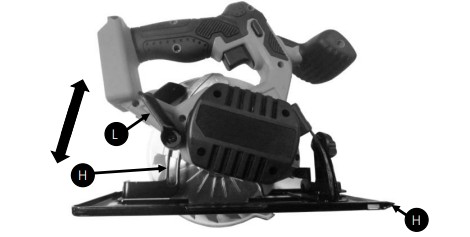

HY2183 Depth Adjustment

• Set the Baseplate (G) against a flat surface, and release the Depth
  Lever (L).
• Now you can Raise and lower the machine to set the cutting
  depth. Use the Depth Scale (H) to set desired depth.
• Secure the preferred depth by locking the Depth Lever (L)

HY2183 Bevel Adjustment

• Set the Baseplate (G) against a flat surface, and loosen the Bevel Lock-Nut (1).
• The machine will be able to tilt from side to side, set prefered angle
  on the Bevel Scale (2).
• 3. Secure the preferred angle by tightening the Bevel Lock-Nut (1).

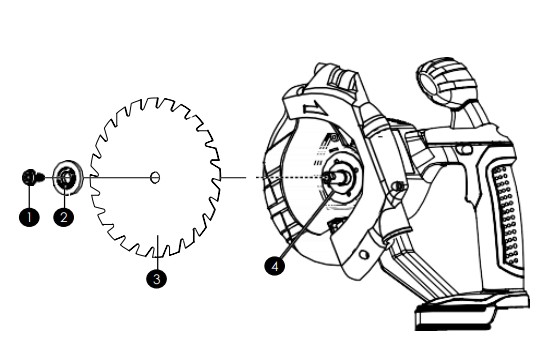

HY2183 Removing/Replacing Blade

• Adjust the machine depth to as shall as possible, this will ensure the most ease during the process
• Press the Spindle Lock Button, and at the same time turn the Blade Bolt (1) clockwise with the included tool.
• Remove Outer Flange (2). Press the Lower Guard Lever (E) to make way for the blade.
• Remove the blade. Keep the Inner Flange (4) on the spindle.
• Install a new blade with the rotation arrow, facing the same way as the arrow on the Upper Guard
• Now install the Outer Flange (2), and Blade Bolt (1), following the same method in step 2. But whilst holding the Spindle Lock Button, rotate the Blade Bolt (2) clockwise.

Maintenance & Care

• Turn OFF the machine, allow all moving parts to come to a complete stop, and disconnect the power cord before maintaining the machine. You need to wear proper clothing and protective gloves whenever your hands are at risk.
• Keep all nuts, bolts and screws tight to be sure the machine is in a safe working
  condition.
  • Replace worn or damaged parts for safety. Only use manufacturerrecommended parts and accessories.
